Products > Modular Plug > Shield CAT7 Plug > 1.5mm wire hole CAT7 RJ45 modular plug with clip

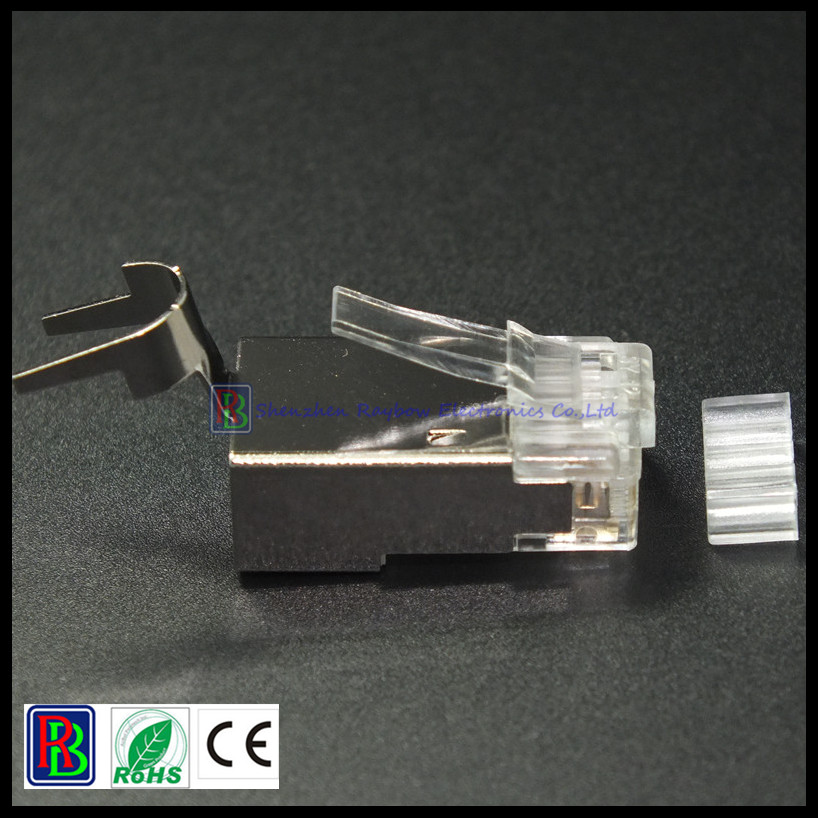

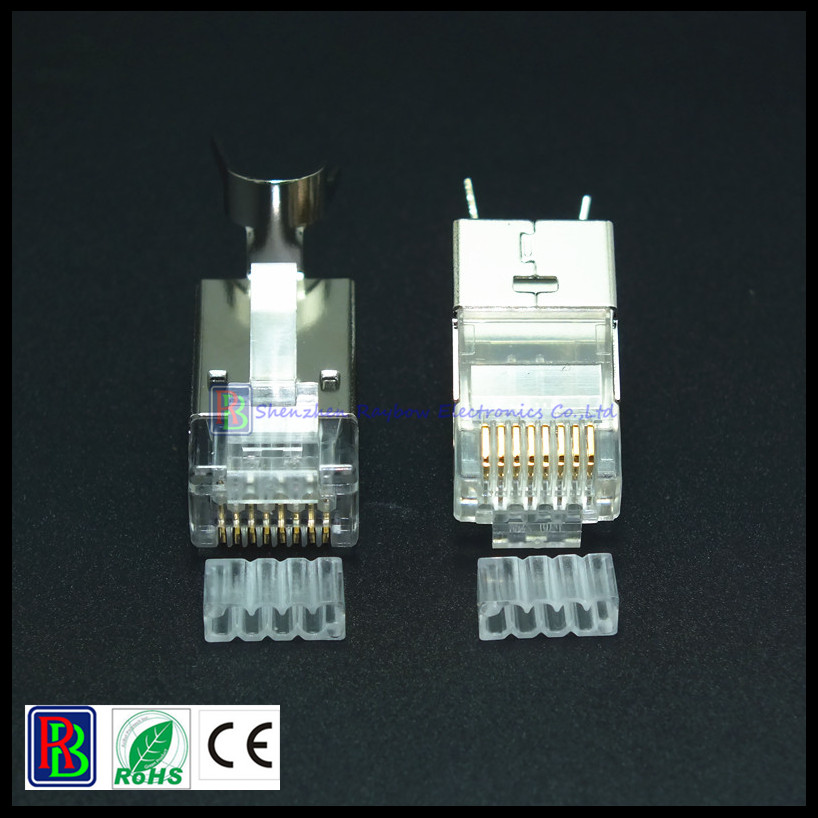

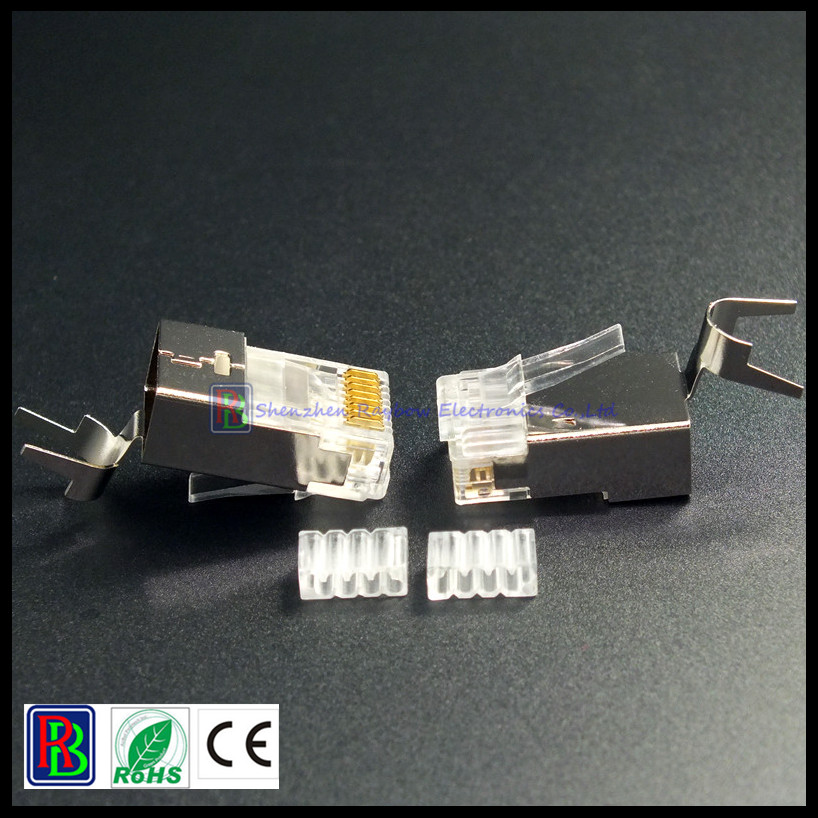

Product name : 1.5mm wire hole CAT7 RJ45 modular plug with clip
Item : P7-S2
Price : USD0.60/PCS
 Enlarge Image                   Back



Details:

Specifications


Shielded CAT7 RJ45 modular plugs connector (8pin shielded)
1.2-1.5mm wire hole
RoHS compliant
50u" Gold plate



1.5mm wire hole STP CAT7 RJ45 plug with cable clip



MULTI-PIECE TYPE
The multi-piece type shielded RJ45 plugs are designed for patch cord makers.
It accepts 22~26 AWG (0.6mm~0.40mm) for both solid & stranded wire.



SPECIFICATIONS
RoHS Compliant.
 Meet FCC CFR 47 part 68 and IEC 603-7.
 Housing: Polycarbonate (PC), UL 94-0 Rated.
 Contact Blade: Phosphor bronze, selective Gold over Nickel plating.

MECHANICAL
 Plug Mating Life: 750-Cycle.
 Cable to Plug Tensile Force: 20 lbs (89N)
Type of Contact Blade: 2-Prong for stranded wires, Angled 2-Prong for solid wires, 3-Prong for both stranded & solid wires.

ELECTRICAL
Current Rating: 1.5Amps.
Insulation Resistance: 500 megohms minimum.
Contact Resistance: 20 milliohms maximum.
Dielectric Strength Voltage: 1000V AC (RMS 60Hz).


FEATURES

 It has solved the problem of how to separate wires for assignment without harming Category 6 performance. We proudly introduce the 2-piece type fully shielded plugs.

EASY-TO-ASSEMBLE
 All you have to do is strip the cable, insert the wires into our specially designed Insert Unit, cut the surplus wires and snap the full Insert Unit into the plug housing.

MUCH BETTER NEXT PERFORMANCE
 With the Insert Unit you could only untwist a very short length of wire (7mm), which means you will get better NEXT for patch cord. In addition,
our specially designed strain relief boot  holds the cable firmly without flattening or affecting twisted wires.
