Products > PCB Modular Jack > RJ45 Jack series > Bottom entry 8P8C RJ45 PCB modular jack
Product name : Bottom entry 8P8C RJ45 PCB modular jack
Item : RB044XX88XCXXXXJ
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

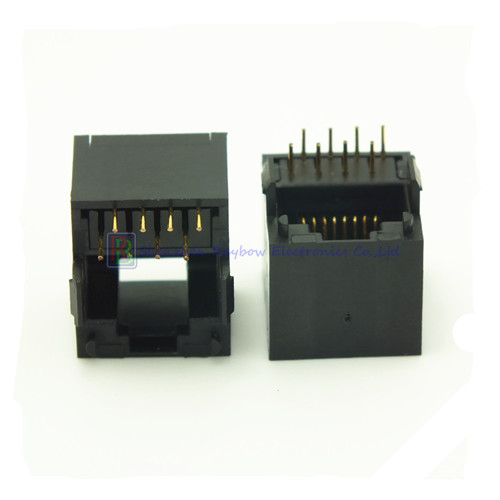

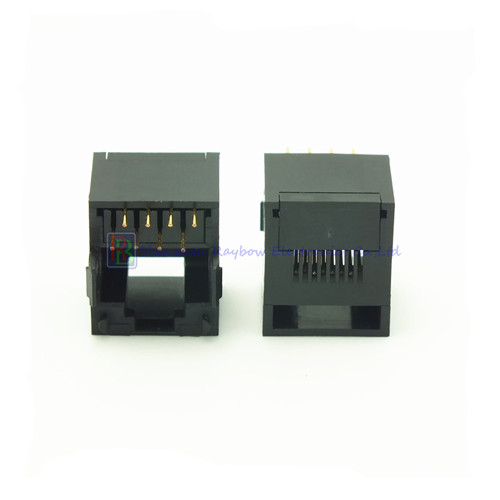

Bottom entry  8P8C RJ45 female PCB modular jack



ELECTRICAL

CURRENT RATING:1.5AMPS

VOLTAGE RATING:125VAC

INSULATION RESISTANCE:500MEGOHMS MINI

WITHSTAND VOLTAGE:AC 1000V RMS 50Hz or60Hz 1MIN

CONTACT RESISTANCE:30MILLOHMS MINI



MECHANICAL

INSERTIONFORCE:2CONTACTS..350g 4CONTACTS..500g 6CONTACTS..750g

8CONTACTS..900g 10CONTACTS..1050g

RETENTION STRENGTH:7.7Kg BETWEEN JACK AND PLUG

CRIMP TENSILE STRENGTH:2.27Kg

DURABILITY:750MATING CYCLES MINI



MATERIAL

HOUSING:

1)PA66(UL94V-0)

2)GLASS FILLED PBT(UL94V-0)

3 )PA9T (94V-0)

CONTACT WIRE:

1)0.45mm DIA PHOSPHOR BRONZE GOLD PLATING OVER NICKEL

2)0.35mm THICKNESS PHOSPHOR BRONZE ALLOY SELEOTIVE GOLD

PLATING OVER NICKEL

SHIELDING:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED

GOLD PLATING:G/F u inch 3u inch 6u inch 15u inch 30u inch, 50u inch.

CONDITION:

USING CONDITION: -20 C~+55C RH 85% BELOW

STORING CONDITION: 0C ~32C ,RH 65% BELOW
